Aluminium 5754 Sheets and Platess manufacturer in UK

Aluminium 5754 Sheets Dealer in West Midland, Alumnium 5754 Hot Rolled (HR) Sheet and Plates Supplier in West Midland, Al 5754 Sheets in Birmingham, Aluminium Alloy 5754 Plates Size Chart, Alumnium 5754 Sheet Price in Nottingham, Aluminium 5754 Cold Rolled (CR) Sheet Supplier in United Kingdom, Aluminium 5754 Sheet Stockist in Liversedge, Aluminium 5754 Sheets and Plates Exporter in UK, Al 5754 Sheet Stockist in Midland, Alumnium Alloy 5754 Plates Supplier in Liversedge

Jacob Aluminium, located in Midland, UK, is a leading manufacturer and supplier of high-quality Aluminium 5754 sheets and plates. Known for their excellent corrosion resistance and high strength, these products are ideal for marine, automotive, and industrial applications. Aluminium 5754 offers great formability and weldability, making it suitable for a wide range of demanding environments. At Jacob Aluminium, we provide reliable, durable solutions tailored to meet the diverse needs of industries, ensuring top-notch quality and performance in every product.

Aluminium 5754 sheets and plates are primarily composed of aluminium with 3.0-3.5% magnesium, offering excellent strength and corrosion resistance, particularly in marine environments. The alloy also contains small amounts of manganese, chromium, and iron, which enhance its durability. Aluminium 5754 has a tensile strength of 200-250 MPa and a yield strength of around 160 MPa, with an elongation of 12-20%. It is non-heat-treatable but offers outstanding weldability and formability. Its ability to withstand harsh conditions makes it ideal for marine, automotive, and industrial applications.

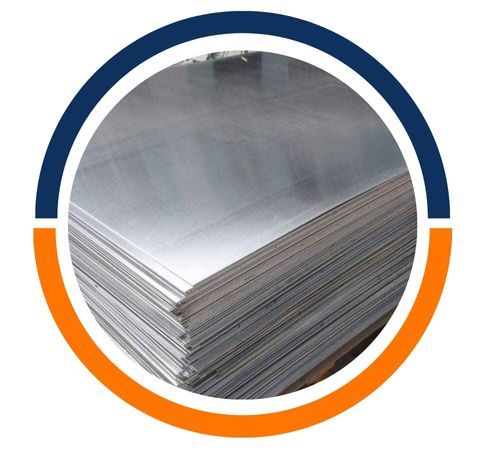

Aluminium 5754 Alloy Sheets

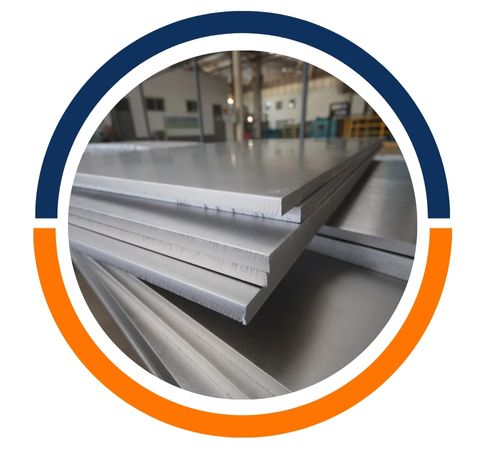

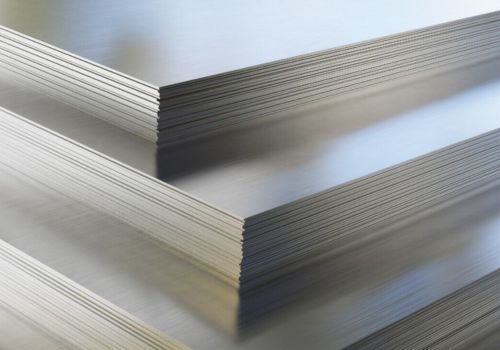

Aluminium 5754 Hot Rolled Sheets

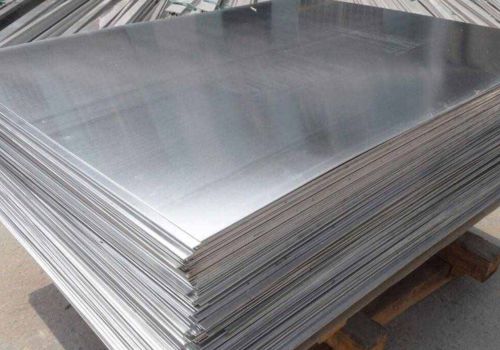

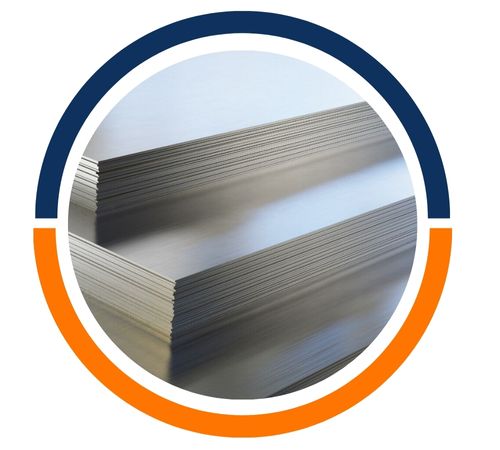

Aluminum 5754 Cold Rolled Sheets

Aluminium 5754 Clad Sheets Distributor in UK, Al 5754 Perforated Plates Supplier in Midland, Aluminium Alloy 5754 Sheet Weight Chart, Al 5754 Plates Exporter in Liversedge, Alumnium 5754 Polished Sheets Manufacturer in West Midland, Aluminium 5754 Shim Sheet and Plate Price List in United Kingdom, Aluminium 5754 Chequered Plates Sizes in mm, Alumnium Alloy 5754 Hot Rolled Plate Distributor in Birmingham, Al 5754 Sheets and Plates Nottingham

Specifications of Aluminium 5754 Sheets and Plates

Standards : ASTM B209 / ASME SB209

Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38

Thickness : 0.2-250

Width : 100-2600

Length : 500-10000

Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.

Finish :Mill, Customer specific finish

Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet

Chemical Compositions of Aluminium 5754 Sheets and Plates

Mg	Mn	Si	Cu	Fe	Cr	Zn	Ti	Cu	Other (Each)	Others (Total)	Al
2.60 – 3.60	0.0 – 0.50	0.0 – 0.40	0.0 – 0.40	0.0 – 0.30	0.0 – 0.20	0.0 – 0.15	0.0 – 0.10	0.0 – 0.05	0.0 – 0.05	0.0 – 0.15	Balance

Mechanical Properties of Aluminium 5754 Sheets and Plates

Proof Stress	Tensile Strength	Elongation at 50 mm	Hardness Brinell
80 Min MPa	190 – 260MPa	12 Min %	52 HB

Get a Customized Quote for High-Quality Aluminium Products Tailored to Your Needs!

Types of Aluminium 5754 Sheets and Plates

Largest Aluminium 5754 Sheets and Plates Manufacturer and Exporter in Midland, UK

Jacob Aluminium based in Midland, UK is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.

Equivalent Grades of Aluminium 5754 Sheets and Plates

UNS	EN	DIN	ISO	USA	WNR
A95754	EN AW-5754	AlMg3	AlMg3	AA5754	3.3535

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Sizes Chart Of Aluminium 5754 Sheets and Plates

Sizes (mm)	Theoretical Mass KG/Plate
2000 X 1000 X 0.5	2500 X 1250 X 0.5
2000 X 1000 X 0.7	2500 X 1250 X 0.7
2000 X 1000 X 0.9	2500 X 1250 X 0.9
2000 X 1000 X 1.2	2500 X 1250 X 1.2
3000 X 1500 X 1.2	2000 X 1000 X 1.6
2500 X 1250 X 1.6	3000 X 1500 X 1.6
2000 X 1000 X 2.0	2500 X 1250 X 2.0
3000 X 1500 X 2.0	2500 X 1250 X 2.5
2.79	4.36
3.91	6.10
5.02	7.85
6.74	10.46
15.01	8.93
13.95	20.09
11.16	17.44
25.11	21.80

Are Custom Sizes Available For Aluminium 5754 Sheets and Plates?

Yes, we offer custom sizes for Aluminium 5754 Sheets and Plates to meet specific project needs. Our team at Jacob Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@jacobaluminium.co.uk

Uses of Aluminium 5754 Sheets and Plates

Aluminium 5754 sheets and plates are widely used in marine, automotive, and industrial applications due to their excellent corrosion resistance and high strength. In the marine industry, they are used for shipbuilding, boat hulls, and decking, as they withstand saltwater exposure. In the automotive sector, Aluminium 5754 is used for fuel tanks, trailers, and chassis components. It is also ideal for pressure vessels, tanks, and industrial equipment exposed to harsh environments. Additionally, its great formability and weldability make it suitable for architectural applications and construction projects.
